| Sef 100 Configuration
listing for Mega T, TE and HCS |
| Version 600 to 975 for Series 8 Ce and Non Ce |
| Version 670 to 775 for Mega T |
|
|
|
|
|
|
|
|
| Configuration page options |
|
|
| Closing force adjustment enable |
|
|
| Enable roller bed |
|
|
|
|
| Tie bar stretching
transducer |
|
|
| Adjustement Enable |
TZ |
PZ |
0 |
| Mold present detector |
|
|
|
| Tailstock motor |
|
Electric |
|
Hydraulic |
| Vertical Mold Introduction |
|
|
|
| Clamps |
|
|
|
|
|
| Ancillaries Management |
|
|
|
| Ejector Hooking |
|
|
|
|
| Mold Alignment |
|
|
|
|
| Operator disable |
|
|
|
|
| Oil Preheat enable |
|
Requires a heater coil |
| Accumulator Enable |
|
|
|
| Automatic Gate Enable |
|
Standard on all presses over 200 tons |
| Automatic Rear Gate Enable |
|
|
| Barrel Cooling Option |
|
|
|
| Pneumatic Oil Carriage Rotation |
|
|
| Enable Core 1-4 |
|
|
Cores A and B |
| Enable Core 5-6 |
|
|
Cores E and F |
|
|
|
|
|
|
| Page 2 |
|
|
|
|
|
| External Start Cycle start with gate open |
|
| Safety cutting out key Qualifications |
|
|
| Gate |
Electric or Pneumatic |
|
|
| Molten Mass Enable |
|
|
|
| Shut off nozzle consent |
|
|
Hydraulic nozzle option |
| Safety devices enable |
|
|
|
| Locking force monitor |
|
|
|
| Flow regulator of core pulling |
|
|
| Hooked running Boards |
|
|
|
| Mechanical Safety |
EV 64 on both Mega T, TE, HCS |
| Safety cutting out keys mold core pull qualifications |
| Air blast enable |
Needs a Board 1 |
|
Air Blast |
| Mold Master |
|
|
|
|
| External Ancillary Device enable |
|
|
| Tie Bar unthreading enable |
|
|
| Enable security accessories |
|
|
| Safety running board enable |
|
Mostly for larger machine 1100 tons and over |
| Quick Setup enable |
|
|
|
| Injection compression cycle enable |
|
Only Mega HCS |
|
|
|
|
|
|

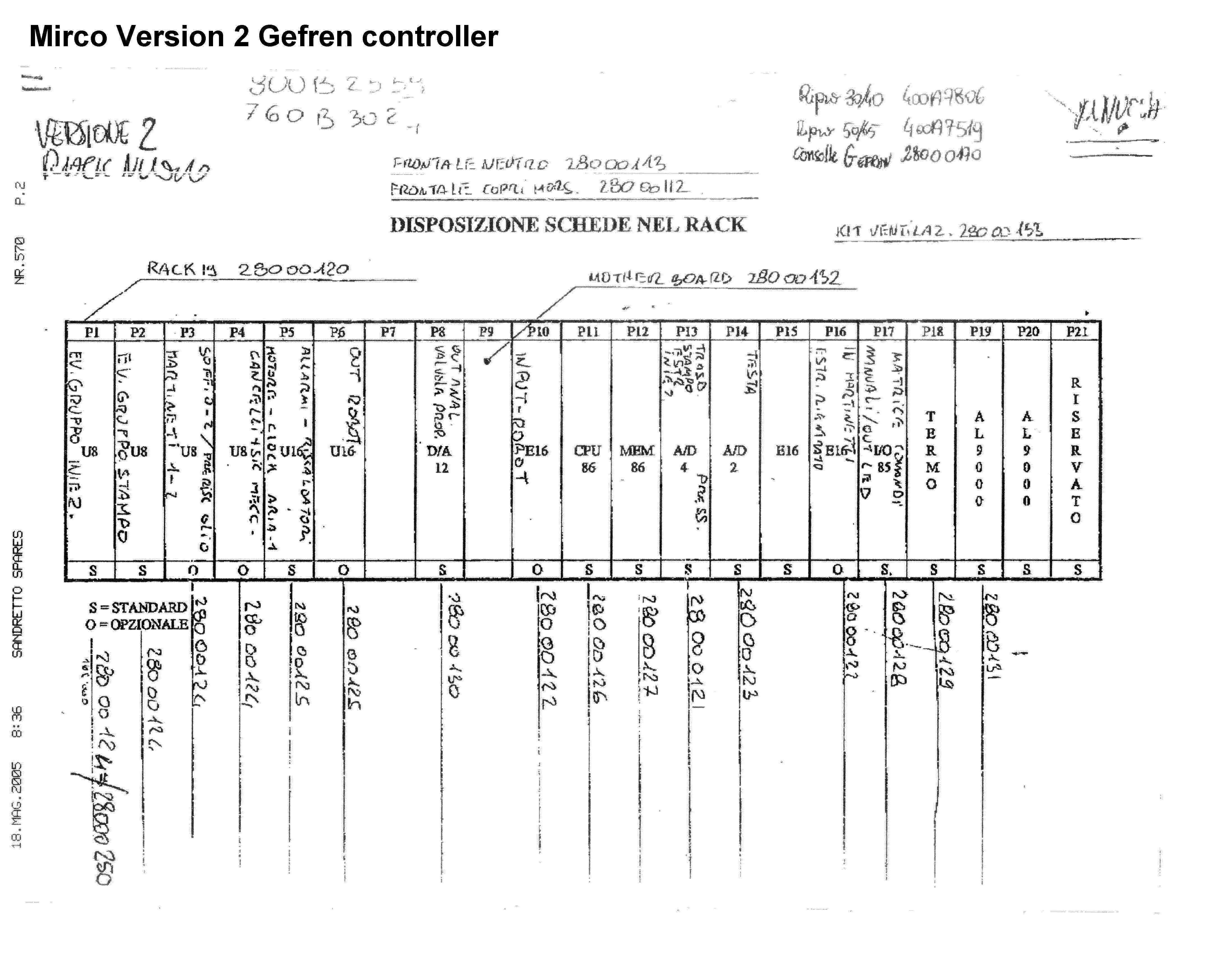

| Dip Switch options selections |
|
|
| J10 Metrel (Tie bar strain gauges, Mega HCS Tie bar
transducers) |
| Configuration page |
|
|
|
| J5 Automation I/O board |
|
|
|
| Encoder Locking Force |
|
|
|
| 2nd Nozzle Zone |
|
|
|
|
| Clock |
|
|
|
|
|
| Barrel Zone D |
|
|
|
|
| Barrel Zone E |
|
|
|
|
| J3 BNC board |
|
|
|
|
| J2 Robot board |
|
|
|
|
| Reserved for Sandretto |
|
|
|
| Floppy |
|
|
|
|
|
| Core Incongruence |
|
|
|
| Printer |
|
|
|
|
|
| Mold Conditon board |
|
|
|
| J6 Auxilary I/O board |
|
|
|
| J11 Bosch and Moog valve interface board |
|
| Hydraulic Nozzle temperature zone |
|
|
| Logifill |
|
|
|
|
|
| Autopurge |
|
|
|
|
| PVT |
|
|
|
|
|
| SPC |
needs a 8087 coprocessor |
|
|
| Production Control |
|
|
|
| Quality Control pages |
|
|
|
| Test mode |
|
|
|
|
| Video display |
|
|
|
|
| Cavity transducer
board Sef 87 |
|
|
| Logigas option |
|
|
|
|
| Hot Runners options |
|
|
|
|
|
|
|
|
|
